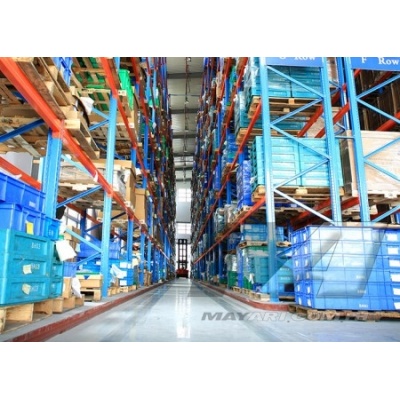

VNA Pallet Racking Aceally Warehouse Storage Solution

Sold by: Aceally Racking
0 5 0 Product
$50.00 per unit for buying at least 100

Report For Fraud Send PM Get Verified

Product Details

50USD/set
jiangsu

unverifiedseller

100
China (中國 • 中国)
福建

Product Description

Aceally VNA pallet racking systems are designed to meet the new generation of warehouses up to 17 meters high, designed around the operating tolerances of Very Narrow Aisle (VNA) equipment with aisles marginally wider than the load. Such structures must have a high level of rigidity and accurate manufacturing tolerance.

VNA006



Features & Advantages:

Increased capacity with increased height:

Warehouse capacity can be increase by an additional 40% over Selective Pallet racking by increasing operational height and the reduction of operation aisle.

Optimal operation:

Radio frequency (RF) controls on the Material handling (MH) equipment will ensure maximum pallet cycles per hour. A smaller reach or counterbalance is generally used in conjunction with the operation of the VNA MH machine, to maximize operation when within the aisle.

High-Bay Storage Advantages:

Good stock rotation

Good order picking: 100% selectivity

Fast picking rate

Good product protection

50% net pallet area usage of overall warehouse area

Limited pallet redundancy as system can run at 95%+ capacity

Uses guide rails or wire guidance for fast movement in aisle

Most Suitable for:

Designed to meet the new generation of distribution centres up to 17 metres high, requires a super flat floor.




Product Specifications:

Name:          Vna Pallet Racks
Main Parts
  • Upright frame, Box Beam
  • Other accessories, such as: corner guard, column guard, pallet support bar, row spacer, etc.
Main Spec.
  • Upright section: 80*60*2.0, 76.2*76.2*2.0, 90*60*2.0, 90*70*2.0, 90*75*2.0, 100*67*2.0, 100*70*2.0, 100*75*2.0, 120*75*2.0, 120*90*2.0mm, 2.5mm is also available.
  • Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
  • Horizontal & diagonal braces: 40*24/34*1.3mm
Finish
  • Powder Coated/HDG/Black Raw
Delivery Time
  • Usually, within 15 days for ordinary order quantity
  • Big qty will make a special arrangement as your schedule.



Product Tags:

vna very narrow aisle,vna pallet racking system




Packaging & Shipping:

van-racking

这是一个必填字段 Aceally Racking is a Top 1 Warehousing Logistics Equipment Integrator in China, its sales network has spread all over the world, including Australia, Middle East, North America, South America,etc. Aceally Group not only has heavy and light style Racking factory, but also has Forklift, Flower Transportation, Pallet, Wire Container, Wire Mesh Decking and other factories. Aceally through their own source advantage and powerful strength, building strategic alliances with Forklift, Pallet, Wire Mesh Decking, Tool Cabinet and other Logistic Equipment enterprises of Top 10 in China. It makes the production line of Aceally warehousing logistics equipment available in all varieties. In Aceally, customers can purchasing equipment in one step, with cheap price, high quality, and satisfied service. Aceally using 15 years to develop Warehouse Storage industry, and developed very quickly within 15 years in Warehouse Storage industry,Aceallyhas becoming an industry leader. And then spent 5 years to develop Logistics Equipment industry, now Aceally has become a Warehousing Logistics Equipment Integrators, it pointed out the future derection of the industry. Through Business to business model to face terminal customers directly, cut off the middleman part. The price of equipment has dropped a lot, bring real benefit to terminal customers, the purchaser is user. Aceally Group not only sells products, but also offer free technical support and after-sale service.With our professional design team, we have years of experience to provide the best solutions to our customers.If you know nothing about Racking or Logistic Equipment, it doesn’t matter, you just need send us your requirements, all the rest to Aceally. One cooperation, lifetime satisfaction. Aceally Racking, saving your time, creating fortune for you.For more information, please visit aceshelving.com 。您可以添加您的公司任务和vission语句。公司历史和更多...
